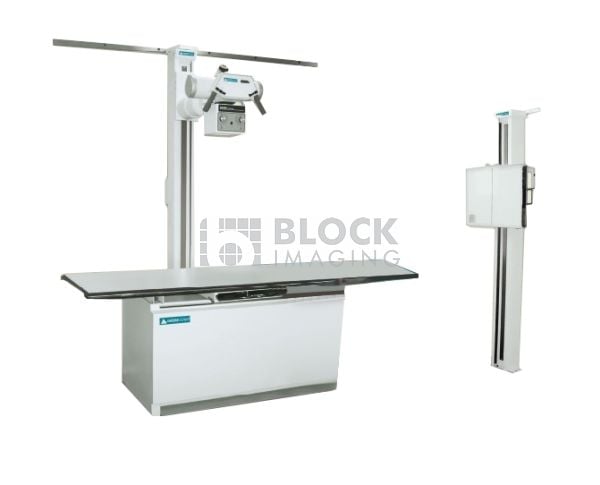

Americomp MDS-2 Rad Room

Americomp - X-Ray - MDS-2 Rad Room [EQ-016604]

  • Spectra 30 HF AP High Frequency Generator
    30 kW Power Rating
    20 kHz High Frequency Technology
    Technique Selection: Anatomical Programming and mAs, kVp
    kVp Range: 40-125, 1 kV Steps
    mA Range: 50-300, Six Stations
    mAs Range:0.5-400
    Microprocessor Controlled
    Digital Display of mAs, mA and kVp
    Built-in Tube Protect System
    UL Classified
    Includes 13 ft. Line Cable
    lncludes Service Manual
    lncludes 50 ft. Operator Console Cables
    Operates from 230-250 VAC Single Phase Electrical Service

    Four-way Float Table
    84 in. x 30 in. Floating Table Top
    400 lb. Rated
    +/-5 in. Transverse, 32 in. Longitudinal Travel
    17 in. x 17 in. Grid Cabinet with 22 in. Travel
    8:1, 103 LPI Grid
    Heavy-Duty Cassette Tray

    Tubestand
    Floor-to wall or Ceiling Tubestand with 8 ft. Rails
    23 in. Tubearm
    Electric Locks
    Angulating Tubemount, Dial Indicator and Operator Handgrips

    Wallstand Package
    Floor-to-wall Counterbalanced Column
    Electric Locks
    17 in. x 17 in. Grid Cabinet with Front Panel
    8:1, 103 LPI Grid
    Heavy-duty Cassette Tray

    X-ray Tube
    1.0-2.0 mm Focal Spot, 140 KHU, 180 Degree Housing

    Collimator
    Certified, Manual Light Field Collimator
    125 kVp Rated

    Cables
    20 ft. High Voltage Cables with Federal Terminations

    Manufacturer's Warranty
    One Year Parts Warranty: X-ray system Including X-Ray Tube

  • Manufacturer: Americomp
  • Modality: X-Ray
  • Model: MDS
