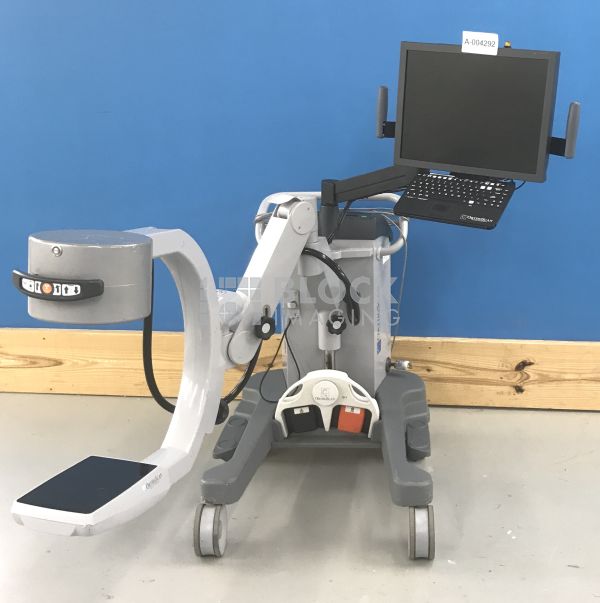

OrthoScan FD C-arm

OrthoScan - C-Arm - C-Arm [EQ-017090]

  • 20.1” LCD Monitors
    9.75” 7.75” Primary Image Size
    4” x 4.75” Secondary Image Size
    2MPp, TGT Monochrome Resolution
    Built in DICOM Calibration
    L/R Swivel
    Height Adjustable
    27” Extendable Monitor Arm
    Dual Reference Image Hold
    50 micron Focal Spot
    40 – 78kVp Range
    0.04 – 0.160mA Range
    ABS
    Adjustable Field of View: 6” x 5” (15cm x 12cm) & 4” x 3” (11cm x 8cm)
    2k x 1.5k Detector Resolution
    6” Nominal Width
    145mm x 115mm Useful Array
    75 microns Pixel Spacing
    70% DQE at 59.5 keV (IEC Standard)
    512 Temporary Image Hold
    3 Image Display
    Snapshot
    30 FPS
    Automatic Adaptive Noise Suppression
    4 Modes Manual Noise Suppression
    Sterile Field Controls
    Edge Enhancement
    Laser Alignment
    8000 Image Storage
    Footswitch
    DICOM
    Free Space 13.8”
    Arc Depth 19.2”
    Pivot 380°
    Lateral Rotate (wig-wag) 320°
    Orbital Rotate 120°
    Vertical Range 31”
    Weight 400lbs
    Height x Width 44.5” x 29”

  • Manufacturer: OrthoScan
  • Modality: C-Arm



Our Process

Step 1: Project manager oversees the refurb process

Step 2: Cosmetic team sands, primes, and repaints

Step 3: Engineers test, replace parts, then calibrate

Step 4: Warehouse team packs for safe shipping

Step 5: Mechanical engineers install at your facility

Step 6: Engineers finalize calibration and checks

Step 7: Service team provides continuous support

120K Square Ft.
Refurbishment Center

30+ In-House
Staging Bays

ISO-9001
Certified Organization
