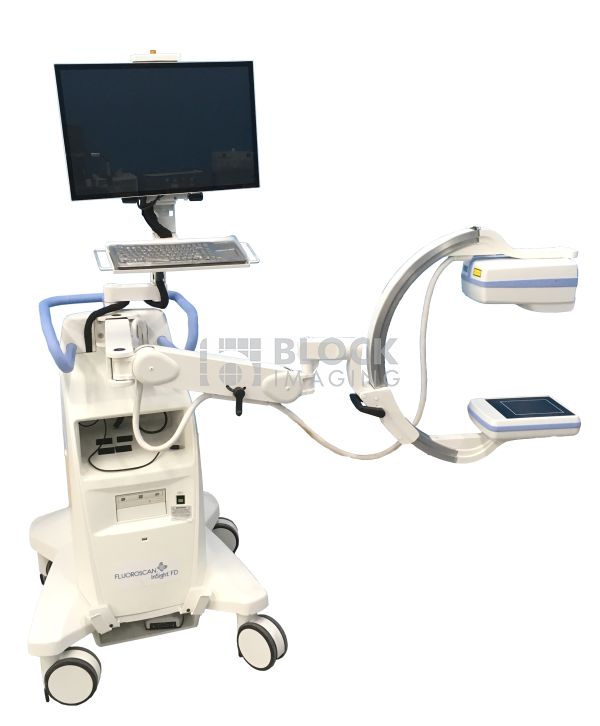

Flat Detector: Thin profile, dual field Flat Detector axis rotation +/- 90 degrees High speed automatic beam collimator tracking Forward mounted tube-head: Deep C-arm access Power Range: 40-75 KVp, and 20-100 micro Amps Ultra fine image resolution with 45 micron focal spot X-ray source Automatic Dose Rate with auto calibration and Image Processing 20” LCD / High Definition touch-sensitive flat screen monitor: Ergo-scopic monitor: Tilts and extends 16” for proper angle visualization Mosaic multi-format display, user preference 1-18 simultaneous images Full 120 degree orbital rotation C-arm with locking capability Laser light with full-time on or 60 second timer Advanced Image manipulation: Brightness & contrast control via tube-head, touch screen or keyboard Real-time noise suppression and edge enhancement Touch-screen image rotate, mirroring, pan, zoom & reverse video Customizable physician preference image acquisition Continuous fluoro and Snap-shot imaging Cine (Digital video) imaging with instant playback Easy-access, Sterile field tube-head mounted controls Comprehensive storage and networking Convenient USB and CD/DVD for image import/export Full DICOM network capability (Optional) 8,000 image storage capacity with auto delete function “Mark as protected” image/case study protection DAP (Dose Area Product) report, standard Surgeon Friendly Ease of Use Features: Physician preference definable configurations Alphanumeric keyboard with hot-key operation Triple function configurable foot switch (Wireless or wired) InSight Wireless Foot Switch - Infrared wireless foot switch
