Getting a Communication Failure Error is a common C-arm issue, but there's a fairly easy fix. We'll guide you through the most common cause and solution. As always, if this doesn't work, reach out to us - we'd love to give you a hand.



1. Common Cause of Communication Failure Error on a C-arm

2. How to Check the Power Supply



NEED NEW C-ARM PARTS NOW?

We can have them shipped to you same day!

When you request a part, it goes immediately into our queue, where our service reps process those requests from 8am to 8pm EST. Once processed, we give the part and packaging a final inspection before shipping.

Request Your Part Here





Common Cause of Communication Failure Error on a C-arm

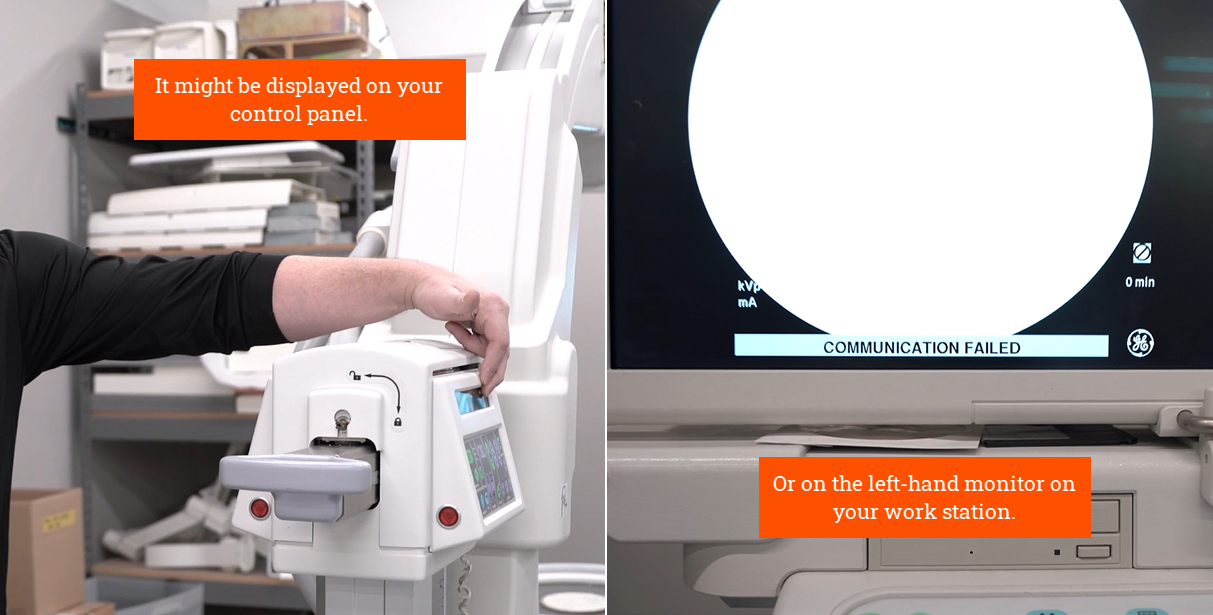

If you're seeing a Communication Failure Error on your C-arm displayed either on your Control Panel or on your Left-hand monitor on the work station, it's probably due the voltage. Your next step is to check the power supply.

communication error display



How to Check Your C-arm's Power Supply

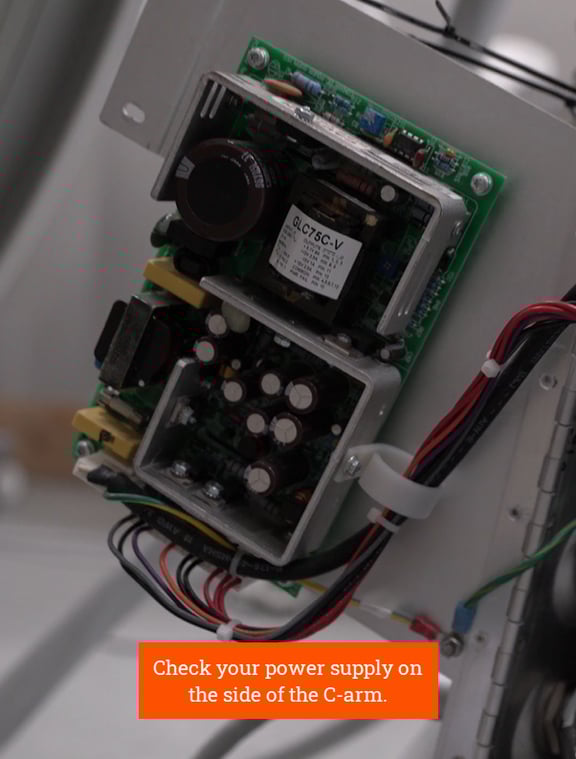

Move to the side of the C-arm to check the Power Supply.

Check your power supply on the side of the C-arm

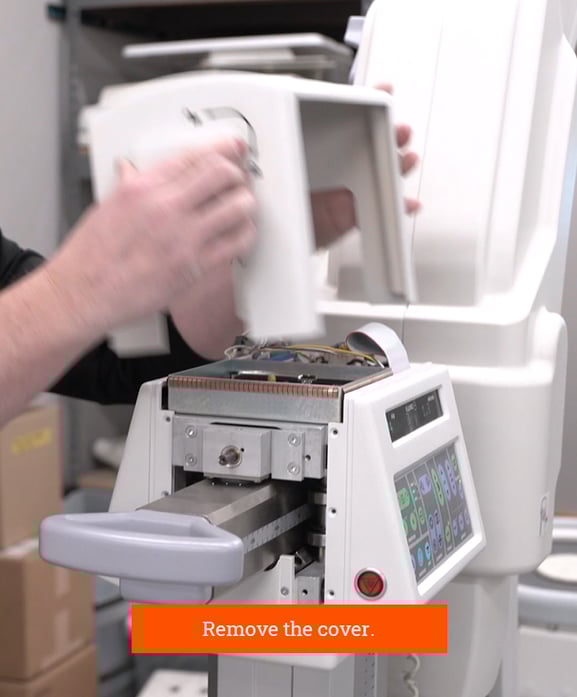

That's going to be feeding five volts across and to the top of our doghouse. Next, remove your cover.

remove the cover

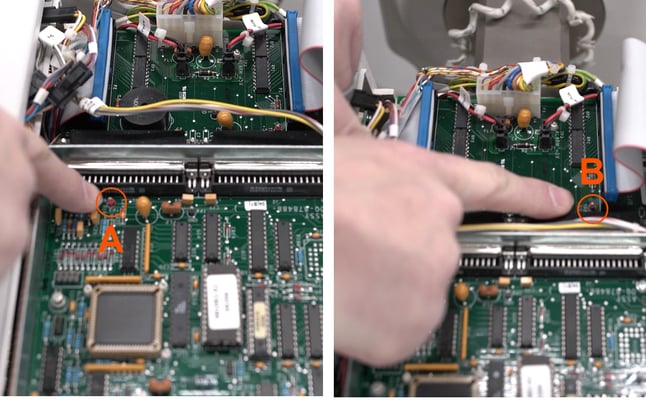

Then check the two test points (A and B) to check for five volts.

test points a and b

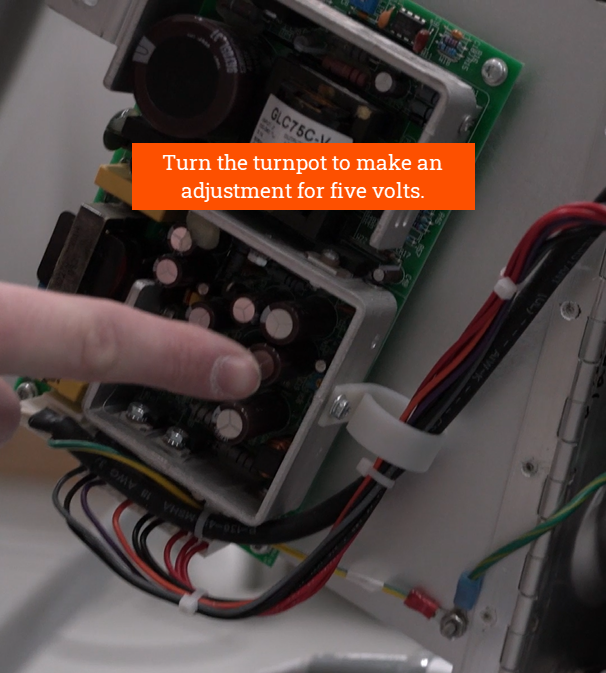

If you need to make an adjustment of your five volts, there's a turnpot you can test here.

make the adjustment for five volts



Once you've adjusted the turnpots to five volts at our test points, you can reboot your system and see if the error goes away. If it doesn't, reach out to us!
